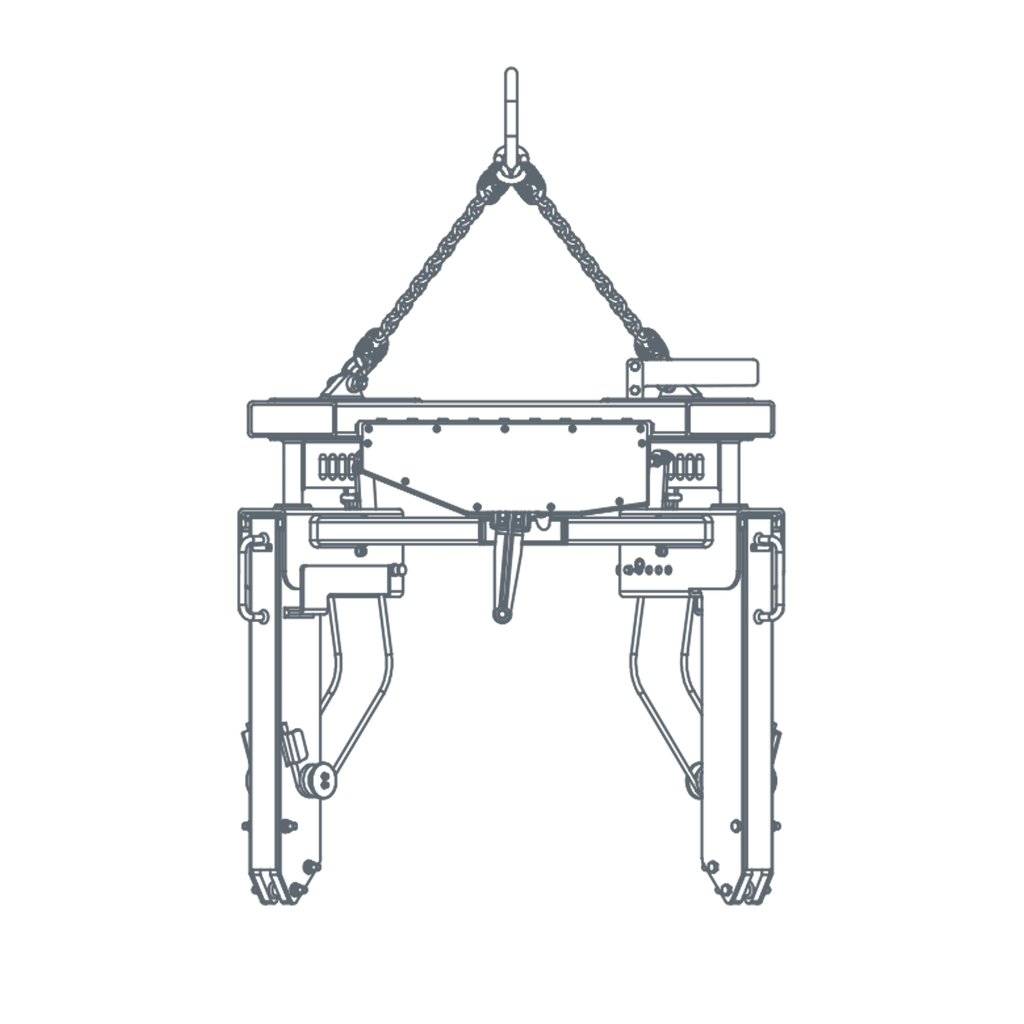

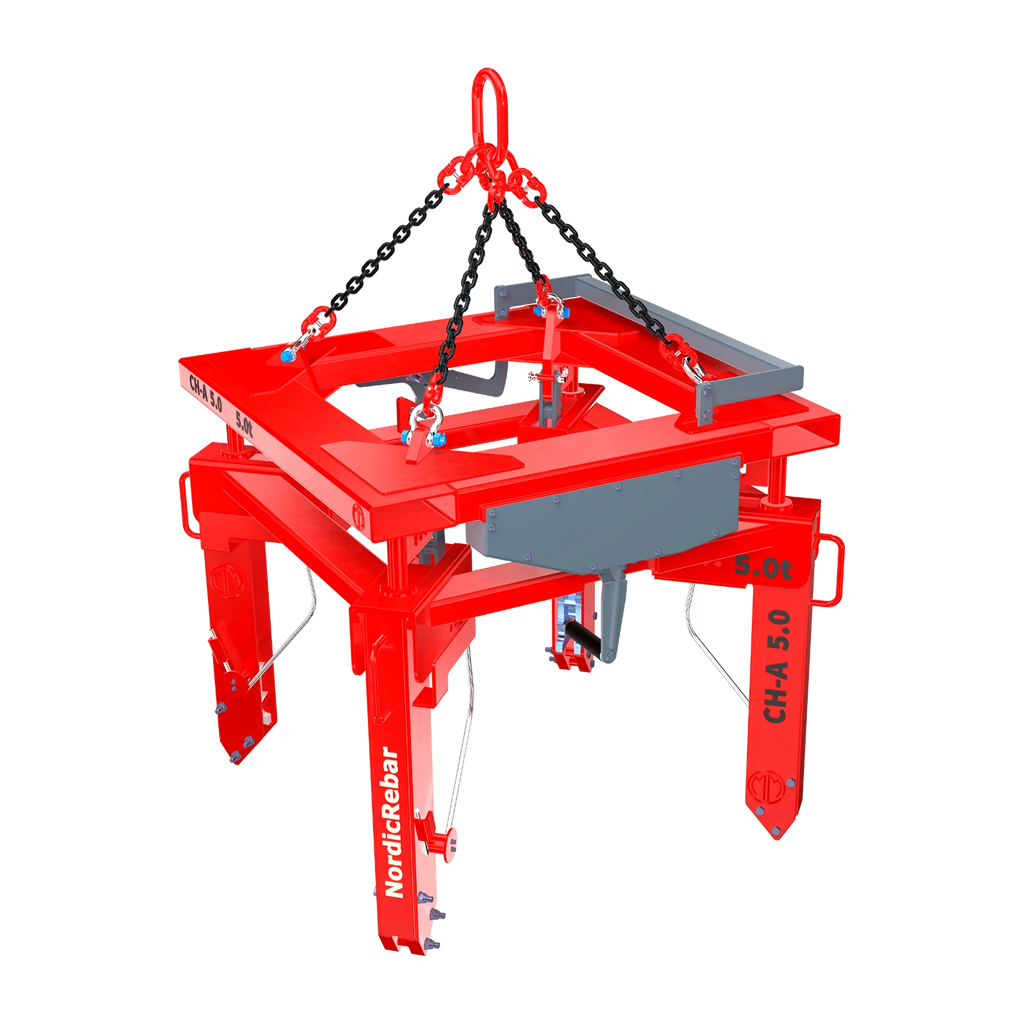

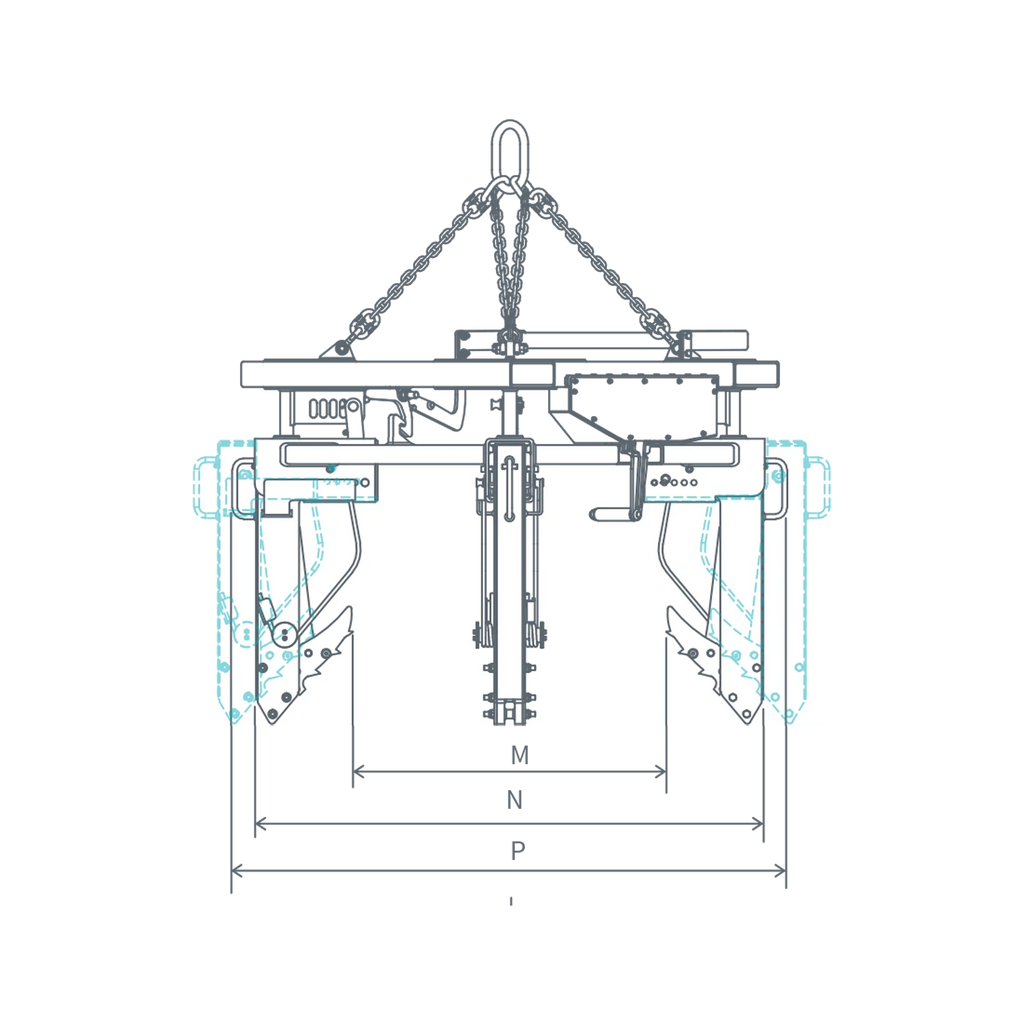

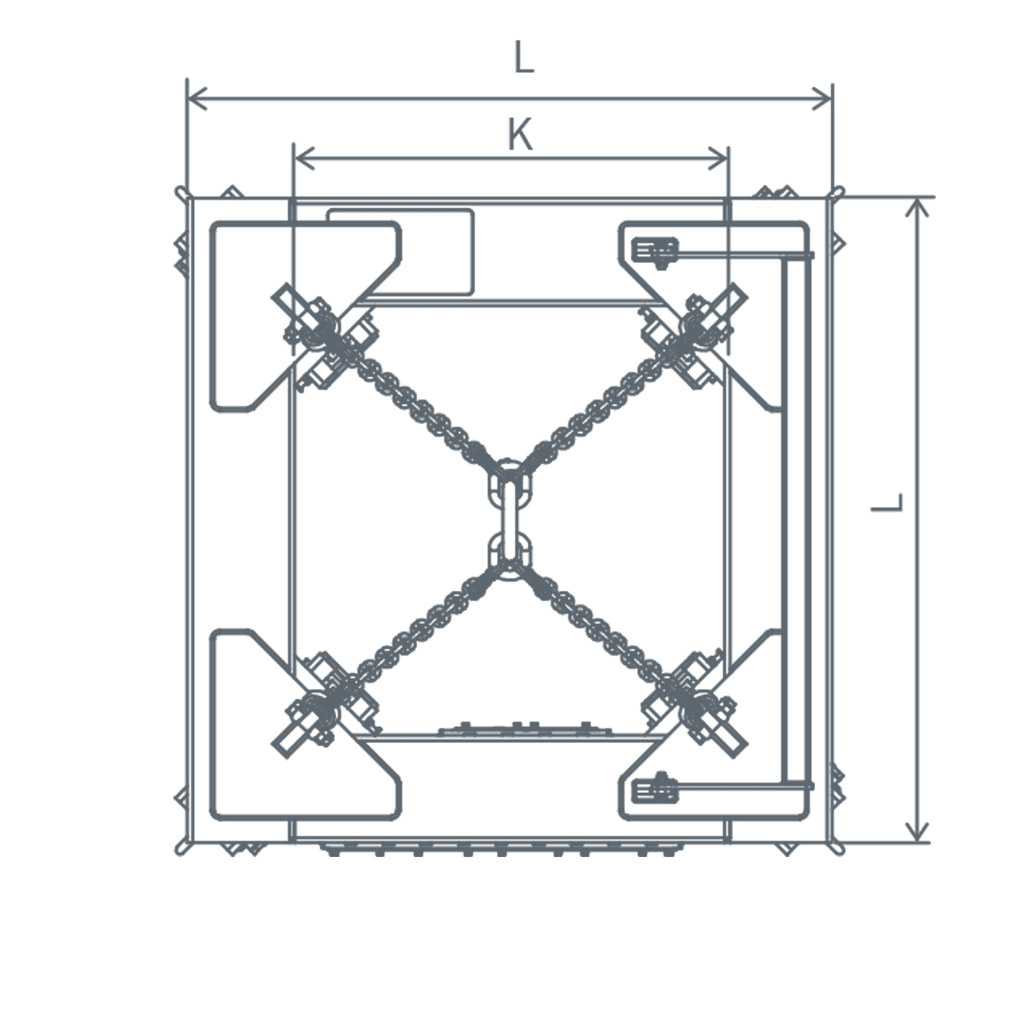

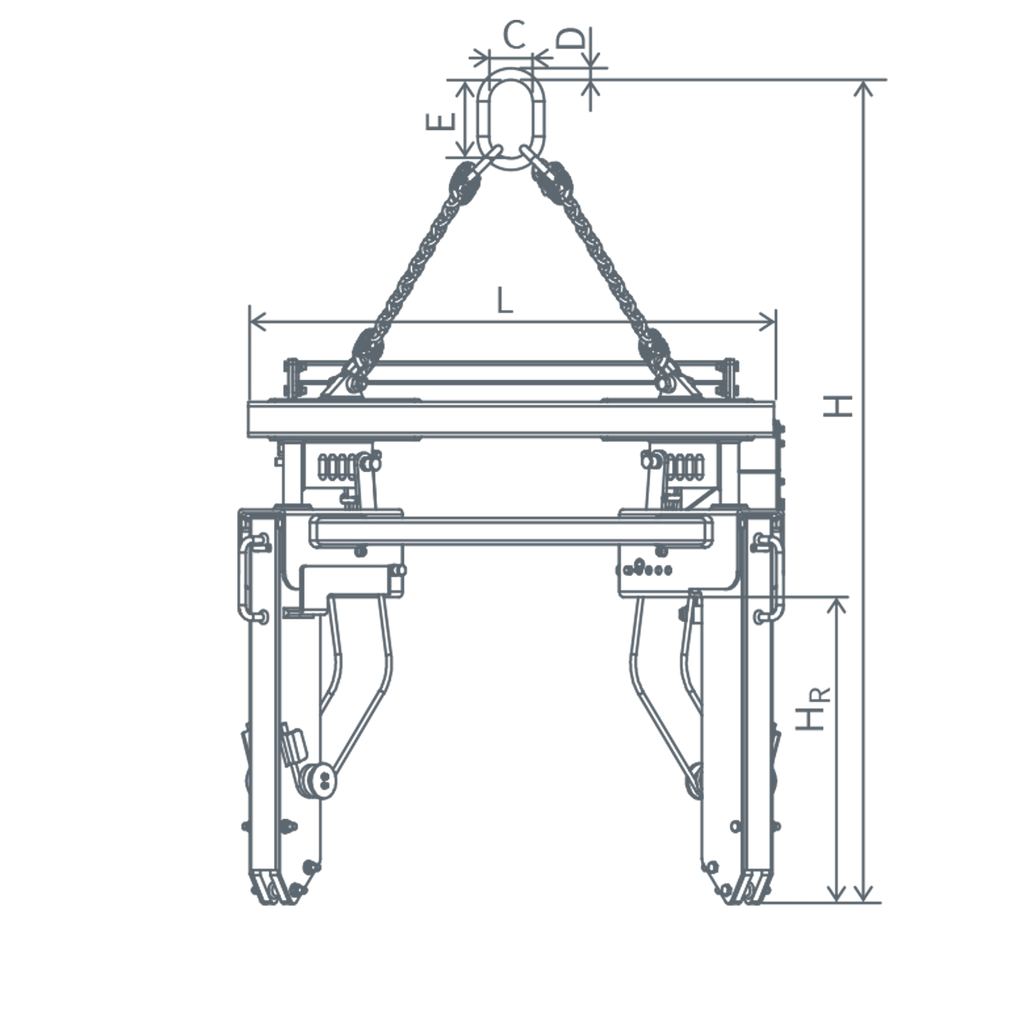

CH-A / Outer Tong w. Forklift Attachement
- For safe lifting or transporting in a horizontal position, stabilized wire coils with an outer diameter corresponding to the gripping range

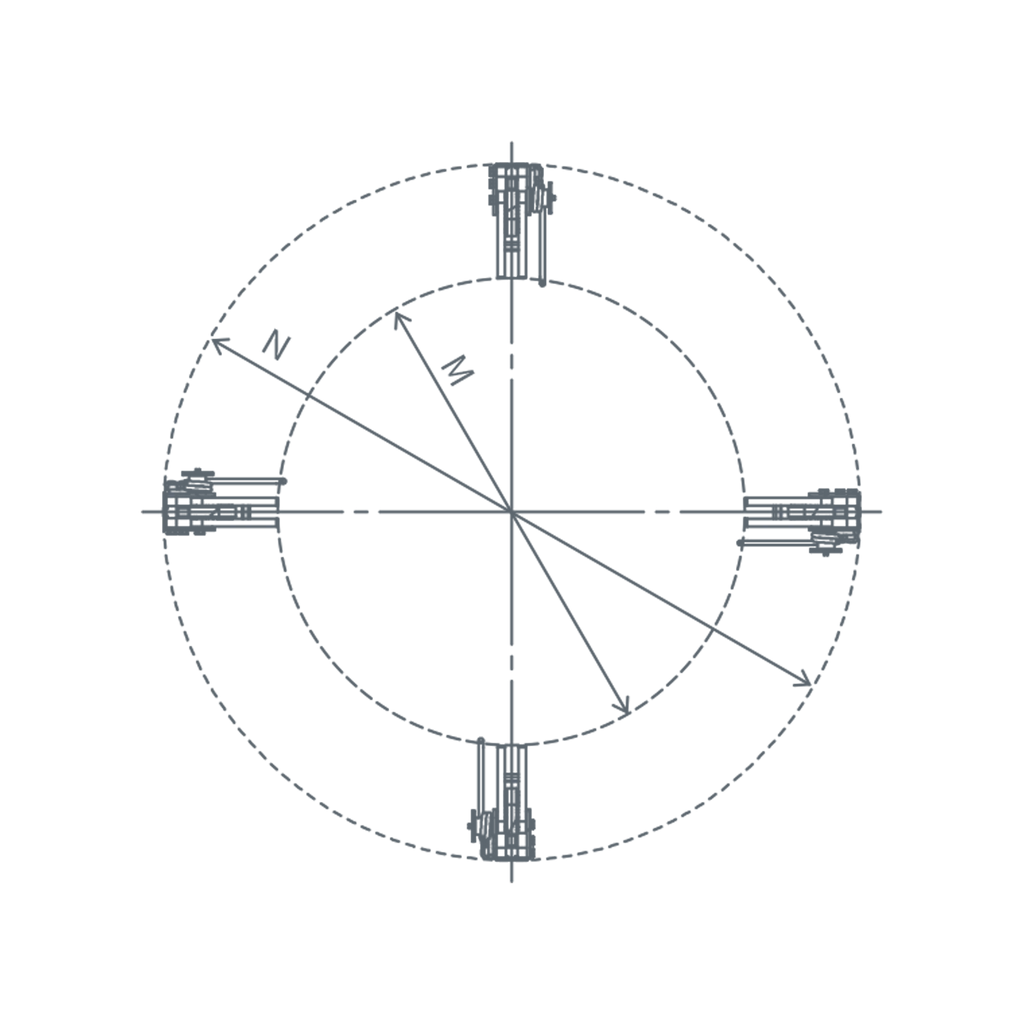

- Self-centering grip: four gripping arms acting compressively in the axial direction on the outer diameter of the coil enable tight packing of wire coils in the storage space, gripping jaws made of hard material
- Gripper equipped with an automatic lock with a latching mechanism, causing alternating closing and opening of the pressure jaws during subsequent lifting/lowering cycles, enabling independent operation of the gripper by the crane operator
- Gripper equipped with a locking mechanism in the open position, enabling safe storage
- Self-clamping grip (the gripping force is proportional to the weight of the load being carried) – the minimum weight of the load cannot be less than 10% of the WLL
- Handle adapted to work with a forklift
