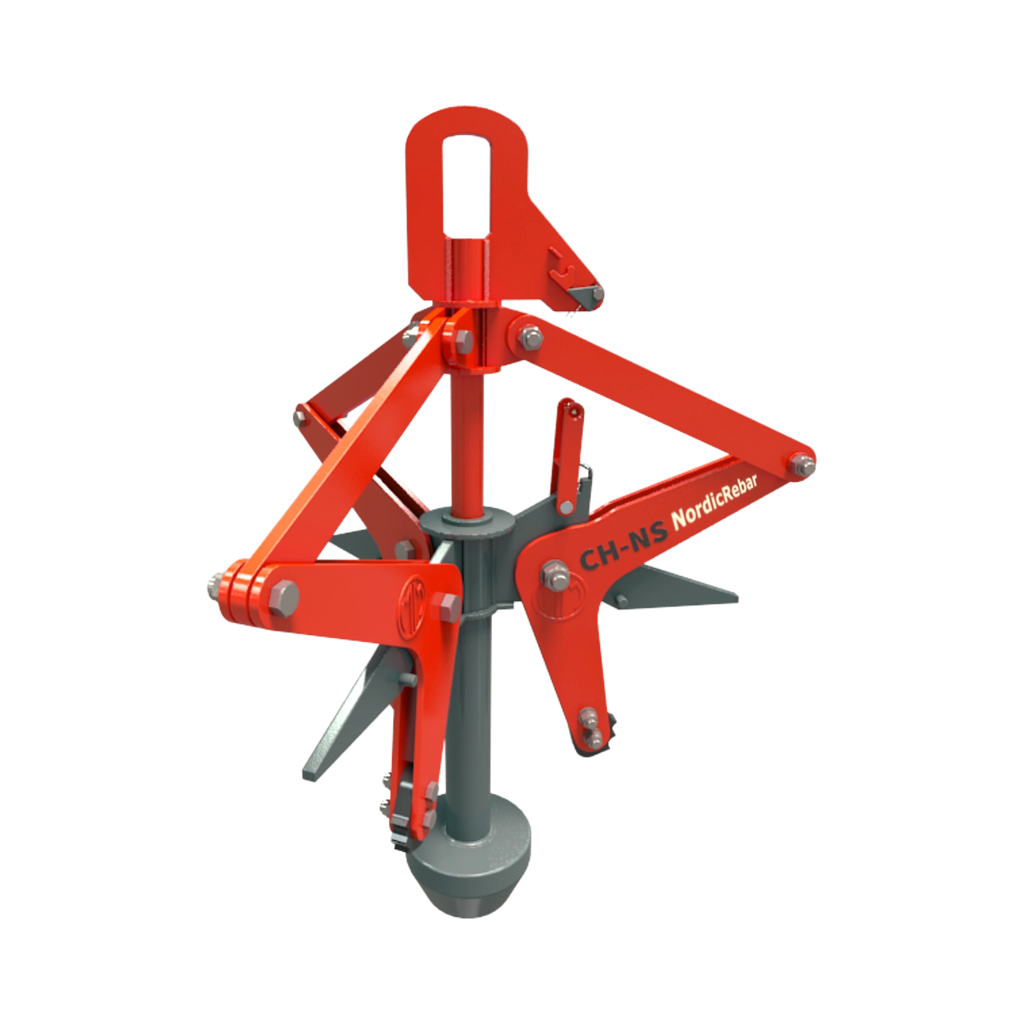

CH-NS / Inner Tong w. Guided Central Tube

CH-NS / Inner Tong w. Guided Central Tube

  • For safe lifting or transporting in a horizontal position stabilized wire coils with an internal axial void corresponding to the gripping range
  • Self-centering grip - a pin that positions the grip in the lifted coil, three gripping arms that act as an expansion on the inner diameter of the coil, a large depression of the gripping points, gripping jaws made of hard material
  • Gripper equipped with an automatic lock with a latching mechanism, causing alternating closing and opening of the pressure jaws during subsequent lifting/lowering cycles, enabling independent operation of the gripper by the crane operator
  • Gripper equipped with a locking mechanism in the open position, enabling safe storage
  • Self-clamping grip (the gripping force is proportional to the weight of the load being carried) - the minimum weight of the load cannot be less than 10% of the WLL
