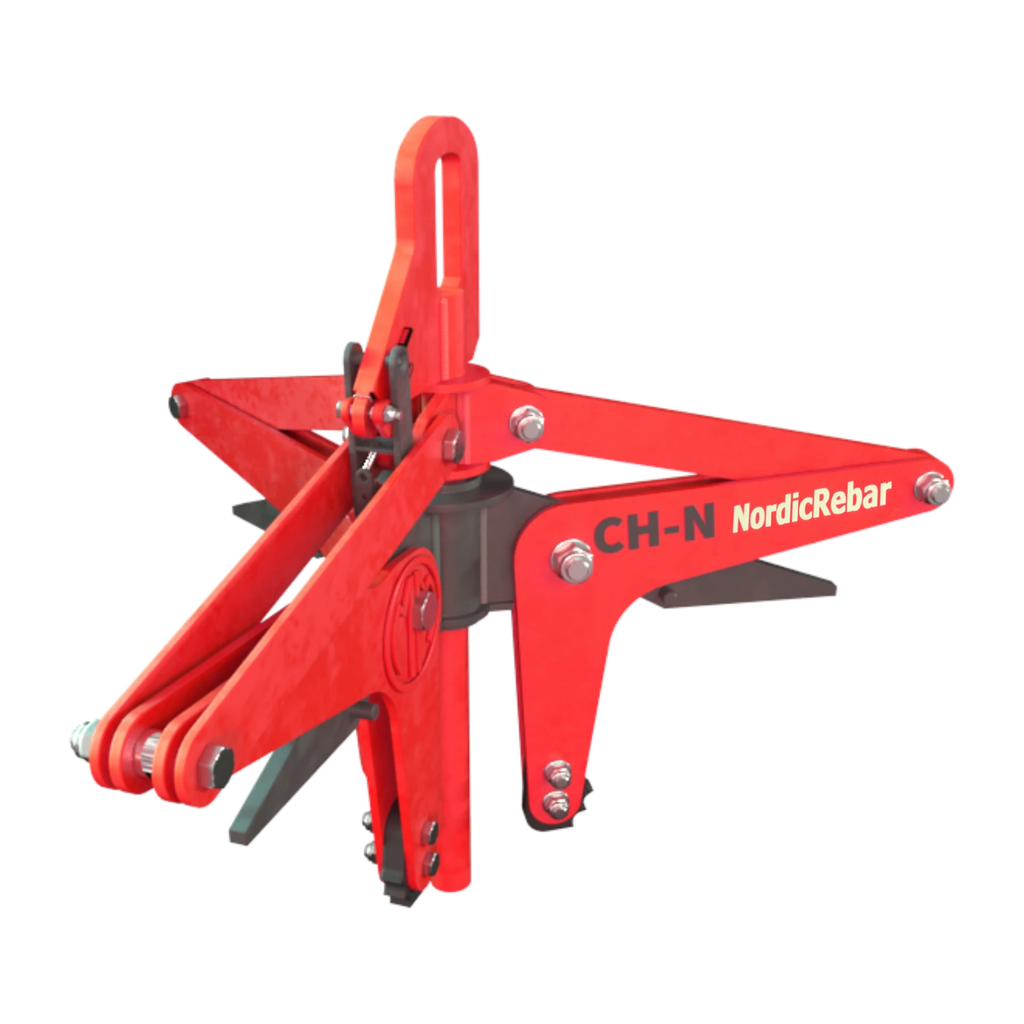

CH-N / Inner Tong / 3-arm
- For safe lifting or transporting in a horizontal position stabilized wire coils with an internal axial void corresponding to the gripping range
- Self-centering grip - three gripping arms acting as an expansion on the internal diameter of the coil, large recess of gripping points, gripping jaws made of hard material
- Gripper equipped with an automatic lock with a latching mechanism, causing alternating closing and opening of the pressure jaws during subsequent lifting/lowering cycles, enabling independent operation of the gripper by the crane operator
- Gripper equipped with a locking mechanism in the open position, enabling safe storage
- Self-clamping grip (the gripping force is proportional to the weight of the load being carried) - the minimum weight of the load cannot be less than 10% of the WLL
